In 2004 we created Logictherm, a new brand, which comes to compete with the range of thermostats sold in Europe. Ergonomic, reliable, resistant - arguments that have made our products to be known and appreciated immediately.

Affordable with beautiful design
Easy to use and to schedule
Needed in a modern home

We continue to work to the development, production and launch of new products to help you save energy.

Digital Thermostats

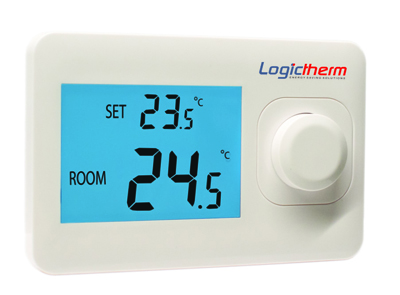

Logictherm R3

Digital Thermostat

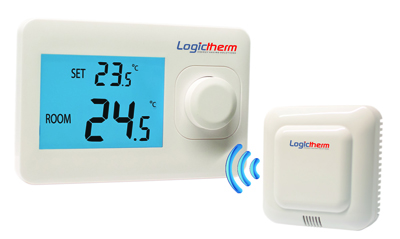

Logictherm R3-RF

Digital Thermostat

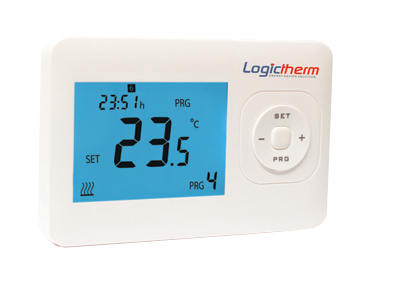

Logictherm R7

Programmable Digital Thermostat

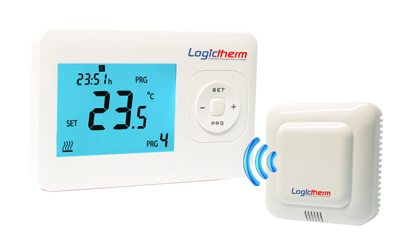

Logictherm R7-RF

Programmable Digital Thermostat

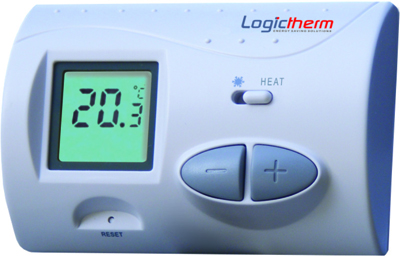

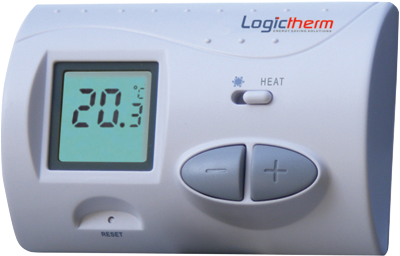

Logictherm C3

Digital Thermostat

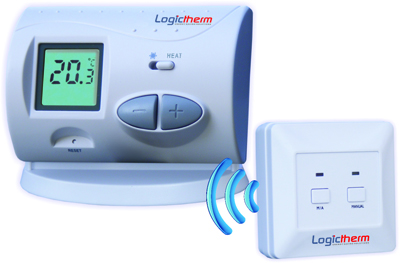

Logictherm C3-RF

Digital Thermostat

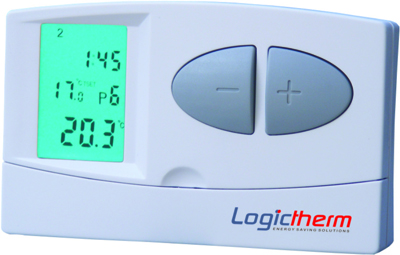

Logictherm C7

Programmable Digital Thermostat

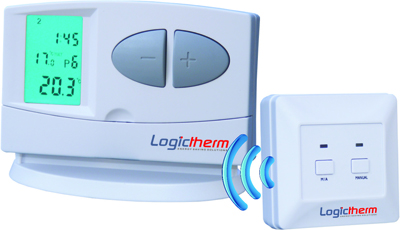

Logictherm C7-RF

Programmable Digital Thermostat

Contact Us

Water Systems International SRL

ITALY

Phone: 0039 071 9712 301

Fax: 0039 071 97 12 464

Email: office@water-systems.it

Address: Via san Giovanni 95, Osimo(An), Italia

ROMANIA

Phone: 0040 021 336 81 03

Fax: 0040 021 337 14 07

Email: office@watersystems.ro

Address: Sos. Giurgiului 48U, Jilava, ILFOV, Romania

	2 years warranty
	Temperature measurement accuracy ±0,5°C
	Selectable switching sensitivity ±0,5°C
	Display light

Technical data:

Power Supply:	2*AAA battery
Receiver relay contact:	8A
Set Point Range:	5 - 30°C
Ambient:	0 - 50°C
Relative Humidity:	85%
Backlight:	white
Sensor:	NTC 10K, 3950 ohmi at 25°C
Accuracy:	± 0,5°C
Protection Class:	IP30
Housing:	ABS to UL94-5 fire retardant plastic

Declaration of Conformity

Instructions

	2 years warranty
	Temperature measurement accuracy ±0,5°C
	Selectable switching sensitivity ±0,5°C
	Display light

Technical data:

Power Supply:	2*AAA battery
Receiver relay contact:	10A
Set Point Range:	5 - 30°C
Ambient:	0 - 50°C
Relative Humidity:	85%
Wireless visual open distance:	100 m
Backlight:	white
Sensor:	NTC 10K, 3950 ohmi at 25°C
Accuracy:	± 0,5°C
Protection Class:	IP30
Housing:	ABS to UL94-5 fire retardant plastic

Declaration of Conformity

Instructions

	2 years warranty
	Temperature measurement accuracy ±0,5°C
	Selectable switching sensitivity ±0,5°C
	Programmable one week
	Independent program every day
	Display light

Technical data:

Power Supply:	2*AAA battery
Receiver relay contact:	5A
Set Point Range:	5 - 30°C
Ambient:	0 - 50°C
Relative Humidity:	85%
Backlight:	white
Sensor:	NTC 10K, 3950 ohmi at 25°C
Accuracy:	± 0,5°C (step control by + 0,5°C)
Protection Class:	IP30
Housing:	ABS to UL94-5 fire retardant plastic

Declaration of Conformity

Instructions

	2 years warranty
	Temperature measurement accuracy ±0,5°C
	Selectable switching sensitivity ±0,5°C
	Programmable one week
	Independent program every day
	Display light

Technical data:

Power Supply:	2*AAA battery
Receiver relay contact:	8A
Set Point Range:	5 - 30°C
Ambient:	0 - 50°C
Relative Humidity:	85%
Wireless visual open distance:	100 m
Wireless:	868 Mhz
Backlight:	white
Sensor:	NTC 10K, 3950 ohmi at 25°C
Accurancy:	± 0,5°C
Protection Class:	IP30
Housing:	ABS to UL94-5 fire retardant plastic

Declaration of Conformity

Instructions

	2 years warranty
	Heating and air conditioning
	Sensitivity of ± 0.1 ° C or ± 0.2 ° C
	Large keys for easier programming
	Reduces energy consumption by up to 30%

Technical data:

Temperature sensor type:	NTC 10Kohm ±1% at 25°C
Selectable switching sensitivity:	± 0,2°C / ± 0,3°C
Adjustable temperature range:	10 to 30°C (in 0.5°C increments)
Temperature measurement range:	5 to 35°C (in 0.1°C increments)
Temperature measurement accuracy:	± 0,5°C
Storage temperature:	- 10°C to + 60°C
Power supply voltage:	2x1 .5V AA alkaline batteries (LR6 type)
Switchable voltage:	24 V AC / DC,…250 V AC; 50 Hz
Switchable current:	8 A (2 A inductive load)
Battery lifetime:	approx. 1 year
Weight:	154 g
Dimensions:	110 x 75 x 45 mm
Defrosting temperature:	7°C

Declaration of Conformity

Instructions

	2 years warranty
	Heating and air conditioning
	Sensitivity of ± 0,2°C or ± 0,3°C
	easy to use
	Reduces energy consumption by up to 30%

Technical data of the thermostat (transmitter):

Temperature sensor type:	NTC 10 KΩ ±1% at 25°C
Selectable switching sensitivity:	± 0,2°C / ± 0,3°C
Adjustable temperature range:	10 to 30°C (in 0.5°C increments)
Temperature measurement range:	5 to 35°C (in 0.1°C increments)
Temperature measurement accuracy:	± 0.5°C
Defrosting temperature:	7°C
Storage temperature:	- 10°C to + 60°C
Power supply voltage:	2x1.5 V AA alkaline batteries (LR6 type)
Power consumption:	1,5 mW
Battery lifetime:	approx. 1 year
Operating frequency:	868,35 MHz
Dimensions:	112 x 75 x 45 mm
Weight:	154 g

Technical data of the receiver unit:

Power supply voltage:	230V AC, 50Hz
Power consumption:	6 W
Switchable voltage:	24 V CA / DC, 250 V AC ; 50 Hz
Switchable current:	6A (2A inductive load)
Transmission distance:	approx. 50 m in open terrain
Weight:	150 g

Declaration of Conformity

Instructions

	2 years warranty
	Programmable one week
	Independent program every day
	Illuminated display
	Anti-block pump function
	sensibility of ±0,1°C
	Big lcd screen
	easy to use
	Reduces energy consumption by up to 30%

Technical data:

Switchable current:	8A (2A inductive load)
Temperature measurement range:	0 to 35°C (in 0.1°C increments)
Adjustable temperature range:	7 to 35°C (in 0.5°C increments)
Temperature measurement accuracy:	± 0,5°C
Selectable switching sensitivity:	±0.2°C (for radiator-based heating systems) +0/-0.2°C (for underfloor heating)
Storage temperature:	- 10°C ... + 60°C
Power supply voltage:	2x1 .5V AA alkaline batteries (LR6 type)
Power consumption:	1.3mW
Battery lifetime:	approx. 1 year
Dimensions:	130 x 80 x 35 mm
Weight:	154 g
Temperature sensor type:	NTC 10 Kohm la 25°C ± 1%

Declaration of Conformity

Instructions

	2 years warranty
	Heating and air conditioning
	Sensibility of ± 0,2°C
	Big lcd screen
	easy to use
	Reduces energy consumption by up to 30%

Technical data of the thermostat (transmitter):

Temperature sensor type:	NTC 10kΩ ±1% at 25°C
Selectable switching sensitivity:	± 0,2°C
Adjustable temperature range:	7 to 35°C (in 0.5°C increments)
Temperature measurement range:	0 to 35°C (in 0.1°C increments)
Temperature measurement accuracy:	± 0,5°C
Storage temperature:	- 10°C ... + 60°C
Battery voltage:	2 x 1.5V ALkALINE batteries (LR6 type; AA size)
Power consumption:	1,3 mW
Battery lifetime:	approx. 1 year
Operating frequency:	868 - 868,35 MHz
Dimensions:	130 x 80 x 35 (without holder)
Weight:	154 g

Technical data of the receiver unit:

Power supply voltage:	230 V AC, 50 Hz
Power consumption:	6W
Switchable voltage:	24 V CA / DC, 250 V AC ; 50 Hz
Switchable current:	6A (2A inductive load)
Transmission distance:	approx. 50m in open terrain
Weight:	150 g

Declaration of Conformity

Instructions
